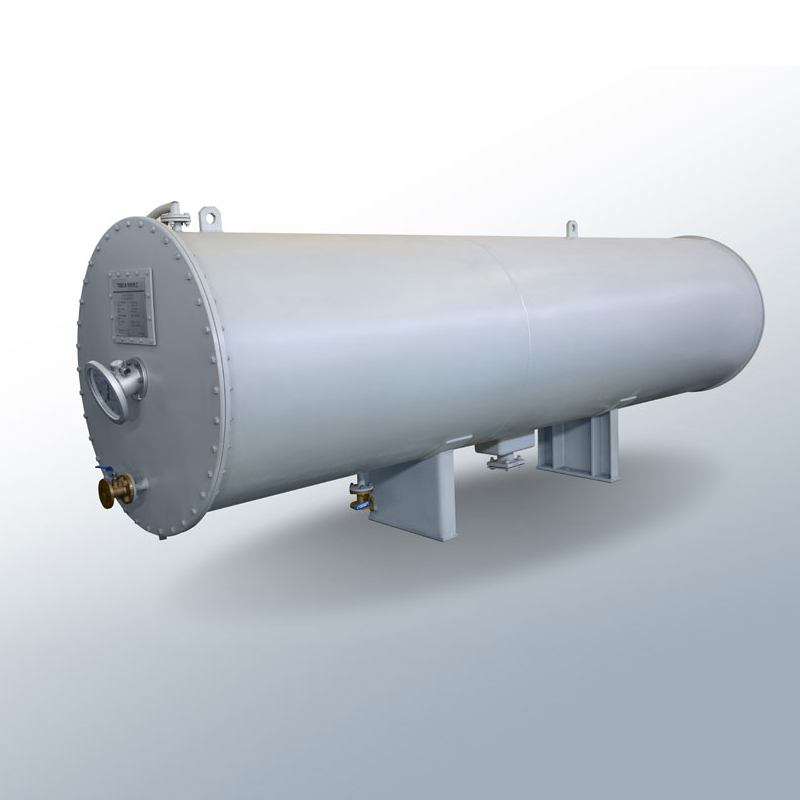

Metal corrugated oil conservator

BCG type metallic corrugated extermal-oil conservator is completely sealed
1, it
mainly use the metallic corrugated tube to separate the transformer oil and air, in this case the transformer oil aging can be avoided effectively to ensure the insulation strength of the transformer oil.The figure of the BCG type metallic corrugated conservator is designed reasonable and beautiful, and it has a contact construction and mable an rigail, the

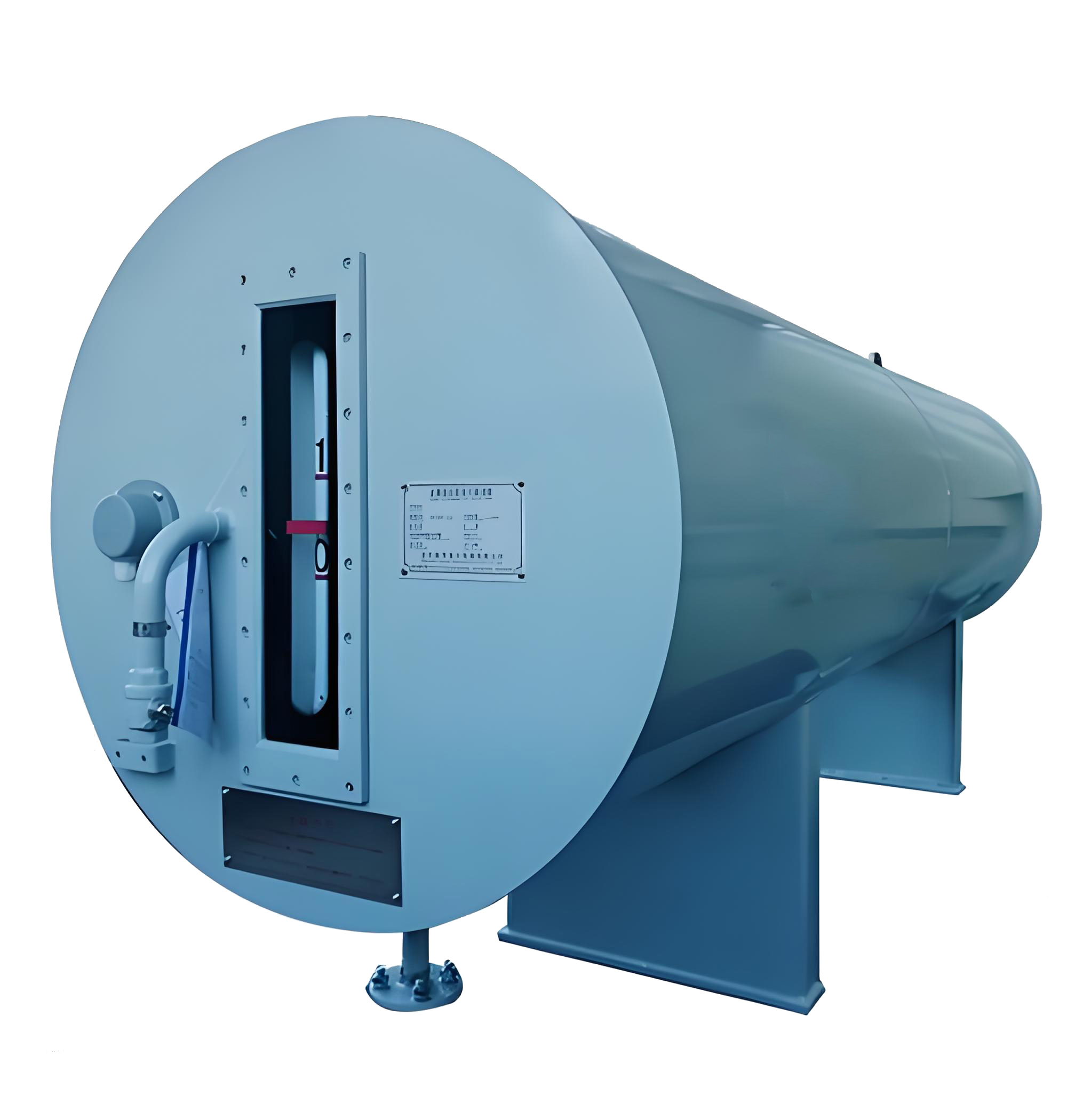

large effective capacity, which can be suitable to large and middle oil-immersed transformer, reactor and other power equipments. The oil volume in the conservator is showed by the pointer type oil gauge, the oil gauge can alarm correctly when the oil volume reaches the minimum or maximum value. The oil gauge also has a function of remote transmission, which can output 4~20mA to control cabinet, it's easy to monitor how much oll in the conservator. The filling tube and the releasing tube on the conservator can fill or release oil easily.
